10W HF/6M Automatic Long Wire Tuner for FTX-1Field

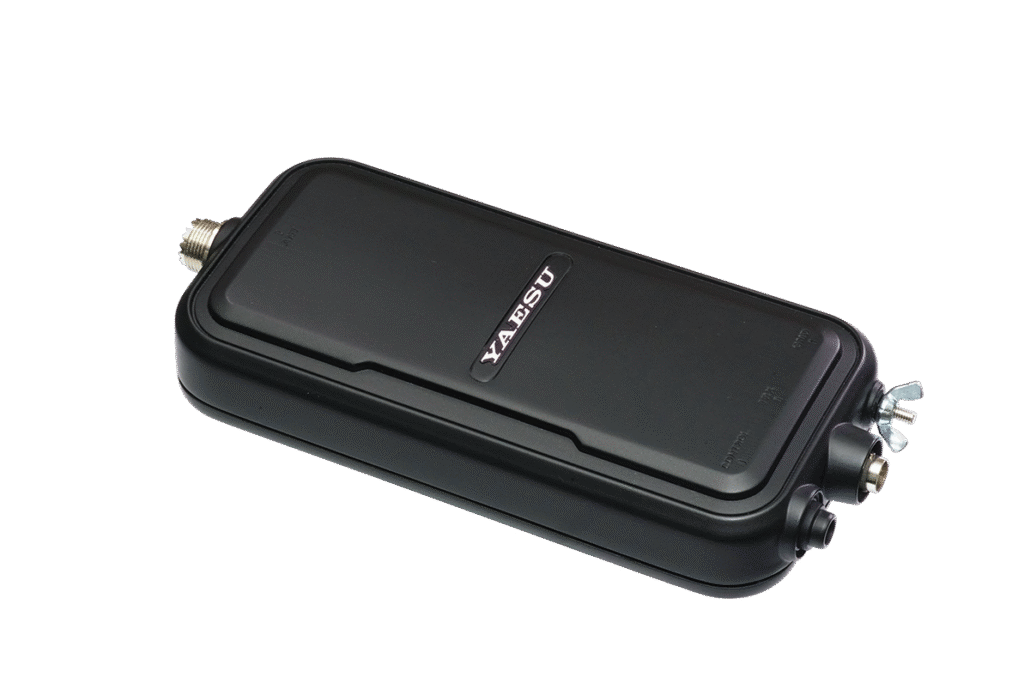

The FC-90 is a 10W HF/6M compact automatic antenna tuner for the FTX-1Field that is compatible with both long wire and 50Ω antennas. Using the control cable and BNC Coax cable it can be mounted close to the base of the antenna.
Specifications
| Operating Frequency Range | 1.8MHz – 54MHz |
| Input Impedeance | 50Ω |
| Maximum Input Power | 10W |
| Matched SWR | 1.2:1 or less (if antenna is not near a multiple of 1/2 wavelength at the operating frequency) |
| Impedance Matching Memories | 200 Channels |
| Operating Temperature | +14℉ to +122℉ ( -10℃ to +50℃) |
| Case Size | 3.62” x 7.28” x 1.42” (92 x 185 X 36mm) |
| Weight (approx) | 12.3oz (348gm) |
Whats in the box
- FC-90 ATU
- Control Cable 2.5M (10PMinDin – 8PDin)
- CoaX Cable (BNC – BNC)
- PL259 to Long Wire Adaptor
- Mounting Knob ( Camera Mount Thread)
