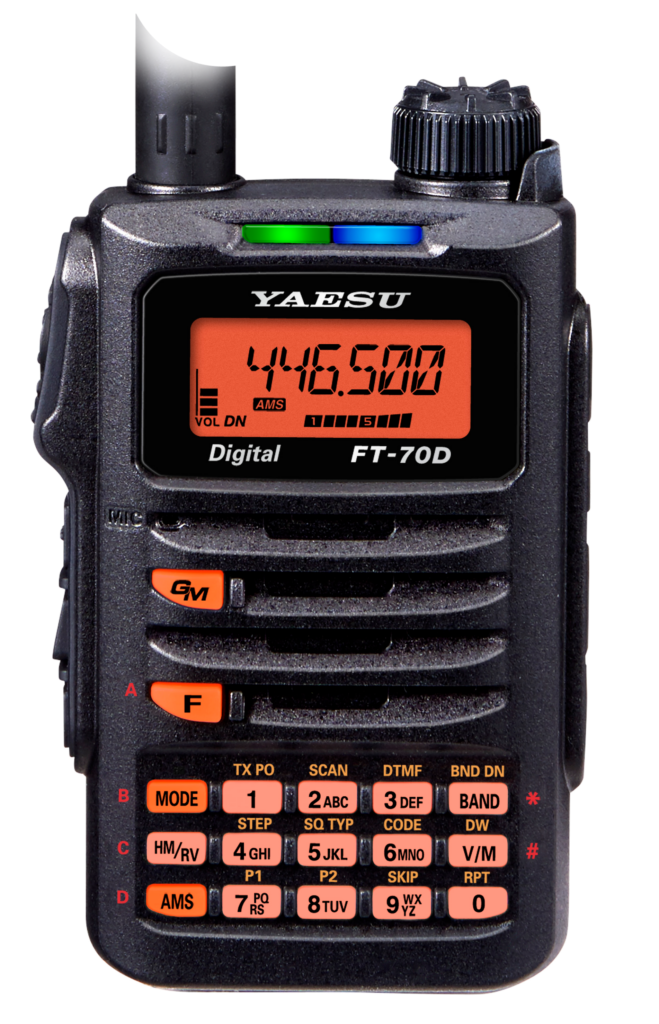

FT-70DE C4FM/FM 144/430MHz Dual Band Digital Transceiver
Digital communication using Yaesu (C4FM (Quaternary FSK) system)
Equipped with AMS (Automatic Mode Select) Function, DG-ID (Digital Group ID) feature, and the Group Monitor (GM) feature enable automatically locating, and communicating with other stations within contact range, that have the matching DG-ID number, (Group ID number from 00 to 99).
Supports all WIRES-X operations excluding PDN or Node Functions.
Equipped with GM function and Digital Personal ID (DP-ID) feature
Wide range reception (108MHz to 579.995MHz)
Rugged Design to IP54, which protects the transceiver from dust and Water splashes
Large-capacity 1015 memory channels with memory tags comprised of up to 16 alpha/numeric characters.
Convenient reception of preset receiver memory channels
A wide variety of scan features
A variety of individual Selective Calling functions (Tone Squelch (CTCSS) and DCS etc.
Simple high brightness LED light function and Battery save function extends operating time
Features
- Compact and Reliable 5W RF Power Output
- 700mW of Exceptional Quality Audio
- Dedicated keys
- C4FM and Wires-X
- Sophiticated Digital ID (DG-1D) operation
- Large Capacity 1015ch Memory and 24 100Channel Memory Banks
- Back illuminated Keypad
- Memory ALPHA tag upto 16 Characters.
- Built in CTCSS/DSC/Pager (EPCS Function enables Selective Calling.
- DTMF Encode and Memory Feature
- ARS Automatc Repeater Shift
- Builtin ON/OFF timer with APO (Automatic Power Off and TOT(Timeout Timer)
- Password Lock feature
- Rugged IP54 rating.
Supplied Accessories
• Rechargeable Li-Ion Battery Pack (7.4 V, 2,200 mAh) SBR-24LI
• Battery Charger SAD-25C
• Antenna
• Belt Clip
• USB Cable
• Operating Manual
• SBR-24LI User Sheet
• Battery Pack protective cap
Specifications
| General | ||
| Frequency Range RX: | ||
| 108 – 137 MHz | Air Band | |
| 137 -144 MHz | 144MHZ HAM | |
| 174 – 222 MHz | VHF Band | |
| 222 – 420 MHz | GEN1 | |
| 420 -470 MHz | 430 MHz HAM | |
| 470 -579.995MHz | UHF Band | |
| Transmitter: | 144- 146 MHz | European Versions |
| 430 – 440 MHz | European Versions | |
| Channel Steps | 5,6.25,8.33,10,12.5,15,20,25,50,100KHz | 8.33KHz Airband only |
| Frequency Stability | ±2.5ppm | -20°C to +60°C (-4°F to +140°F) |
| Emission Type | F2D,F3E,F7W | F7W – C4FM |
| Supply Voltage Nominal | 7.4V DC | Negative Ground |
| 10.5V – 16V DC | Negative Ground (EXT DC JACK) | |
| Operating | 6.0V – 14V DC | Negative Ground (Li-Ion Battery Pack |
| 6.0V – 16V DC | Negative Ground (EXT DC) | |
| Current Consumption Receiver: | 180mA | Receiver Vol 16 |
| 120mA | Standby Mode | |
| Transmitter: | 1.6A | 5W TX 144MHz 7.4V DC |
| 1.9A | 5W TX 430MHZ 7.4V DC | |
| Operating Temperature | -20°C to +60°C | -4°F to +140°F |
| Case Size | 60(W) x 98(H) x 33(D) mm | 2.36\” x 3.86\” x 1.30\” |
| Weight | 250g (8.99oz) | w/SBR-24LI and Antennae |
| Transmitter | ||
| RF Powwer Output | 5W/2.5W/0.5W | @ 7.4V Battery Pack |
| Spurious Emission | At least 60dB below | @TX Power Hi |
| At least 50dB below | @TX Power L2 | |
| Receiver | ||
| Circuit Type | AM, NBFM | Double Conversion Superhet |
| Intermediate Frequencies | 1st IF 47.25MHz | AM, NBFM A Band |
| 2nd IF 450 KHz | AM, NBFM | |
| Sensitivity | ||
| 1.5μV TYP for 10dB SN | 108 – 137 MHz @ AM | |
| 0.2μV for 12dB SINAD | 137 – 140 MHz @NFM | |
| 0.16μV for 12dB SINAD | 140 -150 mhZ @NFM | |
| 0.2μV for 12dB SINAD | 150 -174 MHz @NFM | |
| 1μV for 12dB SINAD | 174 – 222 MHz @NFM | |
| 0.5μV for 12dB SINAD | 300 -350 MHz @NFM | |
| 0.2μV for 12dB SINAD | 350 -400 MHz @NFM | |
| 0.18μV for 12dB SINAD | 400 -470 MHz @NFM | |
| 1.5μV for 12dB SINAD | 470 -580 MHz @NFM | |
| 0.1 9μV TYP for BER1% | Digital Modes | |
| Selectivity | NFM, AM | 12 KHz / 35 KHz ( -6dB / -60dB) |
| AF Output | 700mW | 16Ω for 10% THD Internal Speaker |
| 300mW | 8Ω for 10% THD External Speaker Jack |
IntroText
The FT70DE is a dual band (2M/70cms) 5W Handheld C4FM/FM Wires X Transceiver with easy to use functions. The FT70D has has Wires-X capability for accessing Wires-X compatible Repeaters and Gateways. The FT-70DE supports Digital Group-ID funcition.
