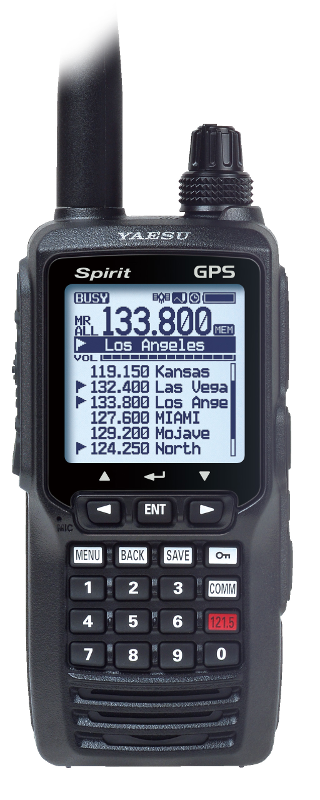

The Spirit FTA-750 incorporates an advanced user interface The FTA-750 Spirit Airband transceiver incorporates an advanced user interface featuring a dot matrix diosplay ensuing intuitive operation and optimised performance.ILS, VOR and GPS navigation capability
Features
- 5 watt TX output power ( Air band AM 5W PEP typical 1.5W carrier)
- Large 1.7\” x 1.7\” ( 43.2mm x 43,2mm) Dot matrix display ( 160 x 160 dots)
- ILS navigation display
- VOR Navigation display
- Integrated 66 channel WAAS GPS receiver
- Waypoint navigation and GPS waypoint logging ¹
- 200 memory channel with 15 aplhanumberic characters per memory
- Back-Lit keypad and display with dimmer control
- Water protection – IPX5 rating
- Loud Audio (800mw)
- includes high capacity Rechargeable Li-ion Battery pack ( 7.4v 1800mAh).
- includes Alkaline Battery Tray ( 6 x AA).
Supplied in the Box
- FTA-750 Radio body
- SBR-12Li Li-ion battery pack
- SBH-11 Charger Cradle with SAD-11C AC Power supply
- SDD-12 Cigarette Lighter DC/DC charging cable
- SRA-13A Antenna
- SHB-11 Belt Clip
- SCU-15 Headset Adaptor Cable
- SBT-12 Alkaline Battery Tray
- T9101606 USB cable for programming memories
- User Manual.
¹1YCE01PC Programming software (available online) is required to view GPS logging data.
| GENERAL | |
| Frequency Range | TX: 118.000 MHz to 136.975 MHz RX: 108.000MHz to 136.975MHz (NAV and COM Band) |
| Channel Spacing | 25KHz and 8.33KHz |
| Emission Type | TX: AM RX: AM |
| Supply Voltage | 6.0 to 9.5v DC |
| Current Consumption (approx) | 300μA Power OFF 70mA Battery Saver ON, Saver Ratio 50% 80mA Squelch ON 300mA Receiver ON 0.9A Transmit (1.5W Carrier) |
| Temperature Range | -10°C to +60°C (14°F to 140°F ) |
| Antennae Connector | BNC |
| Case Size (WxHxD0 | 2.4\” x 5.2\” x 1.3\” (62 x 133 x 34mm) with SBR-12U |
| Weight | 410gm (14.5oz) with SBR-12U and Antenna |
| RECEIVER | |
| Circuit Type | Double Conversion Superhet |
| IF | 47.25MHz and 450KHz |
| Sensitivity | Better than 0.8μV (for 6dB S/N with 1KHz 30% Modulation) |
| Selectivity | Better than 8kHz/-6dB |
| Adjacent Channel Selectivity | Less than 25kHz/-60dB |
| AF Output (internal Speaker) | 0.8W @ 16ohms 10% THD |
| TRANSMITTER | |
| Power Output | 5.0W (PEP) @ 1.5W carrier Power) |
| Frequency Stability | Better than ±1ppm(-10°C to +60°C) |
| Modulation System | Low level Amplitude Modulation |
| Spurious Emissions | > 70dB below Carrier |
| Internal Microphone Type | Condenser |
| External Microphone Type | 150Ω |
| GPS UNIT | |
| Receiver Channels | 66 |
| Sensitivity | better than -147dBm |
| Time to First Fix | 1 Minute typical (@ Cold Start) |
| 5 Seconds typical ( @ Hot Start) | |
| Geodetic Datum | WGS84 |
| Specifications are subject to change without notice or obligation |
