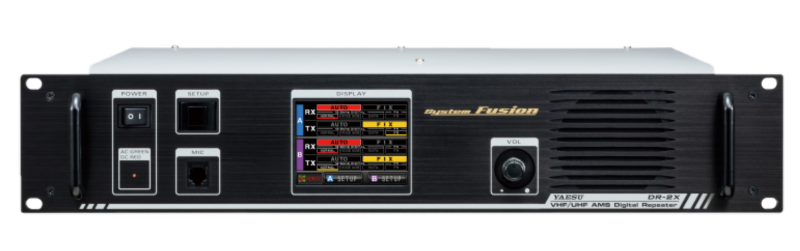

The YAESU DR-2XE is a digital and conventional FM dual mode repeater that covers the VHF and UHF amateur radio band.
Replacing your existing analogue FM repeater with a Yaesu DR-2XE provides contining use of Analogue FM whilst integrating the use of digital communications functions through its unique AMS capabilities. Full support for DG:ID and interlinking to other DR-2XE repeaters using the LAN-01 option provides extended coverage for users.
Extensive use is made of modern touch screen technology using a 3.5″ Full Colour Screen for configuration and monitoring of the DR-2XE repeater.Front Panel Microphone socket & Front facing Loudspeaker with volume control allows the repeater to be used as a base station or for transmitter testing. All connection on the rear panel including DB15 I/O connector for interfacing to and external Repeater controller if required. An external DC 13.8V 20A power Supply is required.
Easy Migration
The Repeater controller, Receiver , Transmitter are all packaged into standard 2U 19\” Rack panel for easy replacment of an existing repeater. All the ancillary equipment like Cavity Filters, Duplexers, Amplifiers, Backup Battery supply can all be used in the new installation.
DR-2XE Features
Modulation modes: Conventional FM, 12.5KHz C4FM Digital ( V/D Mode, VFR Mode, DFR Mode).
[V/D mode: Voice and Data shared. VFR Mode: Voice Full Rate, DFR mode: Digital Full Rate.]
Dual Frequency Operation( DRDT)
MSRL (MultiSiteRepeaterLink) Function for easy coverage expansion using LAN-01 Option.
New and Improved (\”News Station\”) feature for easy sharing of voice and text messaging.
Enhanced Group Monitor Feature for easy Grouping setup [ DG:ID, DP:ID]
AMS Mode:
Automatic Mode Selection function automatically recognises the incoming C4FM signal or conventional FM and then
retransmits the signal using the preset communications mode.
Touch Screen
3.5″ Colour Touch Screen for full configuration of the DR-1E Repeater
Easy User Setup.
High TX Output Power
Extremely Reliable, Selectable between 50W/ 20W / 10W.
Emergency Operation
Supports autoswitched back battery power operation.
Dual Receive / Dual Transmit (DRDT) The unique receiver, transmitter and controller combination of the DR-2XE allows the control operator to assign upto two frequency pairs per repeater. THis feature enable two seperate dual band inputs per single DR-2XE repater, allowing even
more methods of access to the repeater.
Multi Site Repeater Link
The MSRL ( Multi Site Repeater Link) function allows the repeater operator to link multiple repeaters over a Wide-Area-Network (WAN) or Local Area Network (LAN) across short or long distances using direct connectiivty into a variety of networking environmens to provide Digital and Analogue communications.
Front Panel Microphone connectorfor local BASE station operation and transmitter testing.
Full size front facing speaker
with front panel volume control for local monitoring.
Full integration with existing external Repeater controllers using the rear panel DB-15 I/O Connector.
Touch Panel Operation
Enjoy the ease of using the DR-1E 3.5\” Full Colour Touch Panel operation for both setting up and monitoring operation
New and improved News Station Feature
Quickly Store and retreive digital audio and text messages for groups or individual operators that can be accessed on demand at any time of day or night. (Requires the optional MSRL Module installed )
Other features:
- 19″ Rack mount kit available
- High Stability ±2.5ppm TCXO included.
- DSQ ( Digital Squelch Code) signalling feature
- CTCSS and DCS signalling features
- ID announcement feature
- Remote Controller interface
- Base Station operation
- Programmable TimeOut Timer
- Firmware updates
Supplied Accessories
- DC Cable
- PC Connection cable SCU-20
- Rubber Feet (4)
- Operating Manual
- Warranty Card
| General | |
| Frequency Range | 144MHz to 146 MHz 430 t0 450MHz |
| Channel Steps | 5 and 6.25KHz |
| Emission Type | F1D, F2D, F3E, F7W |
| Frequency Stability | ±2ppm within temp specification |
| Antenna Impedance | 50Ω |
| DC Supply | 11.7B to 15.8V DC -ve Supply |
| Current Consumption | 1.5A Receive |
| 13.0A | 50W TX 144MHz Band |
| 14.0A | 50W TX 430MHz Band |
| Operating Temperature | -20°C to +60°C -4°F to +140°F |
| Dimensions | 19″W x 3.5″H x 15″D |
| Weight | 10Kg, 22.05lbs |
| Transmitter | |
| RF Power | 50/ 20/ 5 W |
| Modulation Type | F1D, F2D, F3E, F7W 4FSK ( C4FM) |
| Spurious emissions | >60dB below |
| Receiver | |
| Circuit type | Double Coversion Super Hetrodyne |
| Intermediate Frequencies | 1st IF 47.25MHz 2nd IF 45kHz |
| Receiver Sensitivity | 0.3μV Digital 2m/70cms BER 1% |
| 0.2μV | FM 2m/cms 12dB SINAD |
| Adjacent Channel Selectivity | Better than 65dB (20KHz offset) |
| Selectivity | FM 12KHz/35 KHz ( 06dB/-50dB) |
| Intermodulation | Better than 65dB TYP (20/40KHz offset) |
| Audio Output | 4W 4Ω THD <10% internal speaker |
DR-2XE is a dual band (2m/70cm), High Power (50W/20W/10W ) Amateur Analogue and Digital (System Fusion) Repeater with 3.5\” Touch Screen Colour Display mounted in 19″ 2U Cabinet. Extensive signalling features including Automatic Mode Selection enables cross mode ( C4FM <> FM) conversations via the repeater as well as conventional FM (FM <> FM) and digital (C4FM <> C4FM) contacts. Dual Receive and Dual Transmitter configuration enables two seperate dual band inputs and outputs per single DR-2XE repeater. Multiple site linking is available using the otpional Multi Site Repeater Link (MSRL) module.
