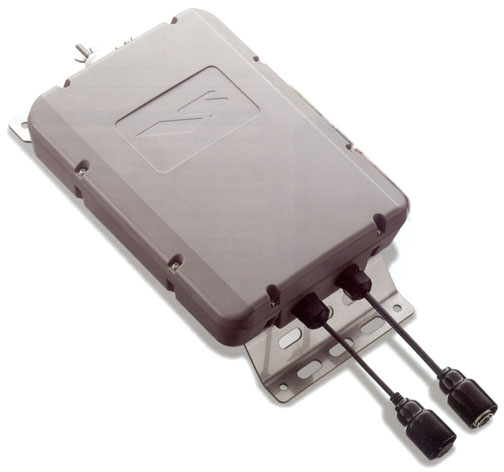

FC-40 External Automatic Antenna Tuner
The FC-40 is a micro-processor controlled antenna impedance matching network designed to provide all-amateur band transmitting capability with many of Yaesu\’s Transceivers, such as the FT-950, FT-450, FT-897 and the FT-857. This tuner is to be used with an end-fed random wire or long whip antenna.
The FC-40 is a microprocessor-controlled antenna impedance matching network designed for use with the FT-950, and all versions (original and โDโ) of the FT-450, FT-857, and FT-897 HF/VHF/UHF Transceivers. The FC-40 makes use of control circuitry inside the transceiver, allowing the operator to monitor and control operation of the FC-40, which mounts near the antenna feedpoint. Fully waterproof, the FC-40 may be mounted outdoors in exposed locations, and will handle a 100 Watts of transmitter power.
The FC-40 is designed for operation on 7 ~ 54 MHz, when using an 8โ whip like the YAESU YA-007, or on 1.8 ~ 54 MHz when used with a random-length wire longer than 66โ. Matching time is typically five seconds or less, and the required drive power is 4 ~ 60 Watts. The FC-40 sports a whopping 200 match-setting-point memories, for instant recall of the tuning settings
- FC-40 Auto Antenna Tuner
- Control Cable, 5m
- Co-ax Cable, 5m
- Sealing tape, 50cm
- Ferrite Core
- U-Bolt Kit
- Machine Screws, Nuts & Washers Set
- Installation Instructions
- Warranty Registration Card
| Specifications | FC-40 |
| Operating Frequency Range | 1.6 to 54 MHz with 20+m end-fed wire |
| 7 to 54 MHz with YA-007 HF 2.5m Mobile Whip Ae. | |
| Input Impedance | 50ฮฉ |
| Maximum Input Power | 100W (3 minutes MAXIMUM continuous TX) |
| Matched SWR | 2.0:1 or less (if antenna is not near a multiple of ฮป/2) |
| Tune-up Power | 4 – 60W |
| Tune-up Time | 8 seconds maximum |
| Impedance Matching Memories | 200 channels |
| Power Supply | 13.8 VDC ยฑ15% (supplied from transceiver via control cable) |
| Case Size (W x H x D, mm) | 228 x 175 x 55 |
| Weight (approx, kg) | 1.2 |
