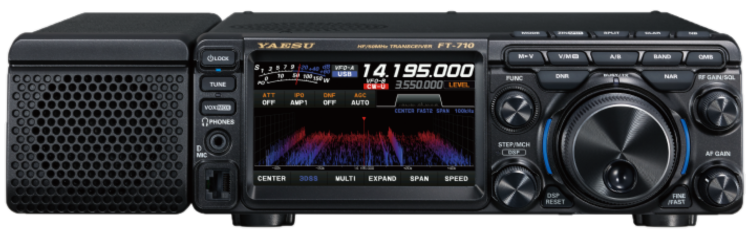

FT-710 AESS 100W HF/6M SDR Transceiver
The FT-710 is a 100W HF and 6M multimode (AM, SSB,CW, DATA. FM) SDR transceiver designed for the 21st century.
It is equipped with the same high resolution A/D converter and FPGA used in Yaesu’s other high-end SDR transceivers and provides superb performance across all bands. Its front panel design emphasis operating efficiency and comfort. Various functions like ‘PRESET’ mode for FT8 operation, built in tuner, SD Card slot for saving and restoring transceiver settings, memory contents, screen capture images and firmware updates. 2 USB ports for operating the transceiver remotely ( SCU-LAN10 required) or inputting text with a USB keyboard. A USB type B supports CAT operaion, Audio input.output and TX control.
- FT-710 is a SDR HF transceiver with 100W TX output power
- Available with AESS ( Acoustic Enhanced Speaker System) or without as FT-710-F
- Front Panel Design emphasises operating efficiency and comfort
- Effective QRM rejection is afforded by High Speed DSP Shift, Width, Notch and Contour Controls
- VMI ( VFO mode indicator) LEDs shows current mode of Tuning knob (VFO-A, VFO-B, Memory Channel, Split Operation)
- Equipped with 3DSS ( 3 dimensional Spectrum Stream) High Resolution 4.3″ TFT Colour Touch Panel Display).
- Multifunctional display showing 3DSS, Waterfall or Frequency and mode direct entry
- FUNC dial Knob accesses the Settings menu on the Screen
- QMB Quick Memory Bank Function
- Preset mode for FT8 operation
- SD Memory Slot for storing and retrieving settings, memory and screen captures.
- Built in High Speed internal tuner and support for FC-40 External Tuner and ATAS-120A mobile Aerial.
- CW operation with CQ zero-in display, CW auto zero-in, CW keying signal shaping, contest memory keyer ec.
- 3 stage Parametric Equaliser
- Band Stack function
- External DVI-D video display connector.
| General | ||
| TX Frequency Range | 1.8 MHz – 50MHz Band Amateur Bands only 70.0 – 70.5 MHz (UK Amateur Band only) |
|
| RX Frequency Range | 30KHz – 75MHz operating range 1.8MHz – 29.7MHz (Spec Performance Ham Bands) 50MHz – 53.4MHz (Spec Performance Ham Bands) 70MHz – 70.5MHz (Spec Performance UK Models) |
|
| Modes | A1A (CW), A3E(AM), J3E (LSB/USB), F3E (FM), F1B (RTTY),G1B (PSK) |
|
| Frequency Steps | 1*/5/10Hz (SSB,CW) 10/100Hz (AM/FM) * Fine Tune “ON” |
|
| Antenna Impedeance | 50Ω unbalanced Tuner OFF 16.7Ω – 150.0Ω unbalanced (Tune ON 1.8 -29.7MHz) 25.0Ω – 100.0Ω unbalanced (Tune ON 50MHz) |
|
| Operating Temperature Range | +32ºF to +122ºF ( 0ºC to +50ºC) | |
| Frequency Stability | ±0.5ppm (>60Seconds @ -10°C to +50°C) | |
| Supply Voltage | DC 13.8V ±15% | |
| Power Consumption (Approx) | RX No Signal – 1.8A RX Signal Present = 2.2A TX (100W) 21A |
|
| Dimensions | 239mm x 80mm x 247mm | |
| Weight | 4.5Kg | |
| TRANSMITTER | ||
| Power Output | 5 – 100W, 25W (AM Carrier Power) | |
| Modulation Types | J3E SSB Balanced A3E AM Low Level early stage F3E FM Variable Reactance |
|
| Maximum FM Deviation | ±5KHz or ±2.5KHz Narrow | |
| Harmonic Radiation | 1.8 – 29.7 MHz Better than -50dB 50MHz Amateur Band 100W Better than -63dB |
|
| SSB Carrier Suppression | At least 60dB below peak output | |
| Undesired Sideband suppression | At least 60dB below peak output | |
| Bandwidth | 3KHz (LSB/USB) 500Hz CW 6KHz (AM) 16KHz (FM) |
|
| Audio Response (SSB) | Not more than -6dB from 300 – 2700Hz | |
| Microphone Impedance | 600Ω (200 -10KΩ) data input | |
| RECEIVER | ||
| Circuit Type | Double Superhetrodyne | |
| Intermediate Frequencies | 1st IF 9.0005MHz, 2nd IF 24KHz | |
| Sensitivity (Typical) SSB/CW (BW 2.4KHz/10dB S+N/N) |
1.8 – 29.7MHz 0.16µV (IPO: AMP2 ‘ON’) 50.0 – 54.0MHz 0.125µV (IPO: AMP2 ‘ON’) 70.0 – 70.5MHZ 0.16µV (IPO: AMP2 ‘ON’) |
|
| AM (BW: 6KHz/10dB S+N/N 30% Modulation @ 400 Hz \ |
0.5MHz – 1.8MHz 7.9µV 1.8MHZ – 30 MHz 2.0µV (IPO: AMP 2 ‘ON’) 50.0 – 54.0 MHz 1.0µV (IPO: AMP 2 ‘ON’) 70.0 – 70.5MHz 2.0µV (IPO: AMP 2 ‘ON’ |
|
| FM ( BW: 12KHz 12dB SINAD) | 28.0 – 30 MHz 0.25uV (IPO: AMP2 ‘ON’) 50.0 – 54 MHz 0.20uV (IPO: AMP 2 ‘ON’) 70.0 – 70.5 MHz 0.25uV (IPO: AMP2 ‘ON’) |
|
| Selectivity (Width Centre) | -6dB | -60dB |
| CW (BW=0.5KHz) | 0.5KHz or better | 0.75KHz or less |
| SSB (BW=2.4KHz) | 2.4KHz or better | 3.6KHz or less |
| AM (BW=6KHz) | 6KHz or better | 15.0KHz or less |
| FM (BW=12KHz) | 12KHz or better | 25KHz or less |
| Image Rejection | 70dB or better (1.8MHz – 28MHz Amateur Bands ) 60dB or better (50 – 54 MHz (Amateur Bands) |
|
| Maximium Audio Output | 2.5W into 4Ω load with 10% THD | |
| Audio Output Impedance | 4Ω to 16Ω ( 4Ω Nominal ) | |
| Conducted Radiation | Less than 4nW |
Included in the box
- FT-710 AESS Transceiver
- SP-40 High Quality Loudspeaker ( Option for FT-710 Field)
- SSM-75E Hand Microphone
- DC power Cabel
- User Manual
