All Mode All band HF/6M/2M and 70cms original ‘Shack in a box’ 100W transceiver

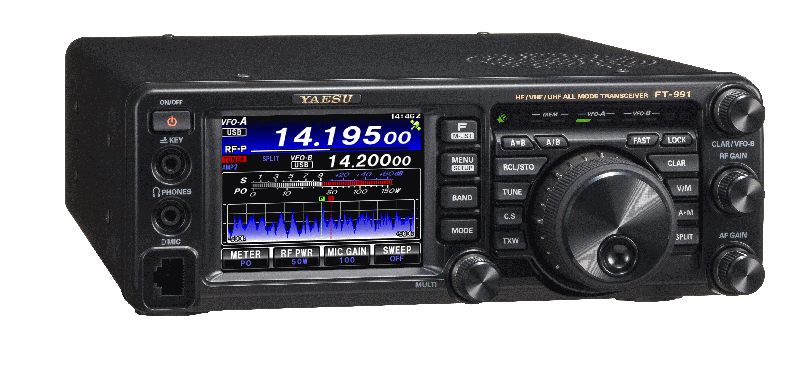

The FT-991Transceiver is the next generation in all mode, all band MF/HF/VHF/UHF transceiver with C4FM ( System Fusion) digital capabilities. The FT-991 includes multi-mode operation on CW,AM, FM, SSB and Digital Modes ( Packet Radio, PSK31, RTTY and C4FM) with 100W TX Output on HF and 6M ( 50W on VHF/UHF).
The NEW FT-991A incorporates as high resolution full colour 3.5\” TFT touch panel for superior operator experience and visibilit, incorporating a high speed Spectrum Scope wiht ASC ( Automatic Spectrum-scope Control) built in.
The FT-991 is designed for the most competitive operating situations, with a suite of new features to enhance the experience of operating the FT-991 whether you are using it at home, mobile or in the field. The FT-991 will provide outstanding performance in providng access to the full range of exciting modes available on the ham bands today.
FT-991A Description
State of the Art Digital Signal Processing
Recognising the all important adage of “You can’t work them if you can”t hear them”‘ the FT-991A features a rugged state of the art highly balanced receiver circuit configuration. The high speed floating point DSP chip from Texas Instrument TMS320C6746 (3000MIPS /2250 MFLOPS) used in the Receiver design guarantees excellent intrerference rejection from real signals under real-world conditions, not only on the HF bands but also on VHF and UHF.
Selectable 3KHz and 15KHx Roofing Filters
The 1st IF incorporates selectable robust 3KHz and 15KHz roofing filters that very effectively attenuate interferring out of band signals. The triple conversion design allows a highly flexible gain distribution in each stage ensuring effective elimination of interfering signals through the use of filters and variable gain distribution.
Automatic Spectrum-Scope (ASC)
The Advanced Spectrum Scope located just below the LCD Frequency and Power Meter Display gives the operator all the information necessary for locating QSOs and includes a real time scope function with full screen display option
Large Colour TFT Touch Screen Display
The high-resolution (480 x 272 dots) 3.5-inch wide colour TFT touch screen displays the operating information and the status of the transceiver functions is displayed on this screen and provide the operator with easy to read operating information.
USB Serial Bus connection
The FT-991A can be connected to a computer using a standard USB cable for CAT control and firmware updates.
100 Watts of Solid Performance
The RF Power Ampifier in the FT-991A provides a clean and solid 100 Watts of Operating Power ( 50Watts on VHF/ UHF) and combined with a large heatsink and forced air automatic fan provides increased operating time and prevents overheating of the Amplifier.
Compact Lightweight and Portable
The FT-991A comes in a compact, lightweight package suitable for Portable, mobile and Fixed station installations. Measuring 229W x 80H x 253D mm (9″ x 3.2″ x 10″; 9.5lbs) and weighing only 4.3 kg, this robust full featured mobile/portable radio is ready to go when and where you are!
Internal Automatic Antenna Tuner
The Internal Automatic Antennae Tuner included in the package uses LC switching network with a large 100 channel memory. Tuning data is automatically stored and retreived to reduce tuning time when changing frequency.
Support for Advanced C4FM Digital Functions
- V/D Mode for Simultaneous transmission of Voice and Data with powerful error correctio optimised for mobile operation & Voice FR mode for high quality audio transmission. #
- AMS (Automatic Mode Selection) function instantly recognises digital mode or FM and enables mutual communictions
- GM (Group Monitor) function allows on screen checking of group members with in range
- 126 different DSQ (Digital Squelch) enables unique selection of stations.
# Sending and Receiving of image data using C4FM is not supported in the FT-991
Other Useful and Convenient Features
- Speech Processor
- Parametric MIC EQ.
- Five channel digital voice memory function for repetitive voice messages.
- MULTI dial design allowing adjustable tuning dial tension
- Key button illumination by WHITE LEDS
- Independent AF Gain and RF Gain and CLAR/VFO-B knobs
- FH-2 Remote keypad control (optional)
- VOX and MOX
- 99 Channel Memory supports group view with 12 Alphanumeric characters
- RTTY/DATA jack
- TUN/LIN allows connection of VL-1000 Quadra Linear or FC-40 External ATU unit
- CS key for quick access to preselected menu item
- USB cable provides CAT, Audio in/out, PTT/RTTY(FSK SHIFT) control
- Carrying handle and Tilt stand included
Supplied “In the Box”
- FT-991A Transceiver
- Hand Microphone MH31A8J
- DC Power Cord
- Operating Manual
- Warranty Card
| Specifications | FT-991A Transceiver |
| GENERAL | |
| Rx Frequency Range | 30 kHz – 60 MHz , 118 -164MHz, 420 -470MHz (Operating) |
| 1.8 – 54 MHz, 144- 148MHz, 430 – 450 MHz (Specified performance, Amateur Bands only) |
|
| Tx Frequency Range | 1.8 – 54 MHz, 144-146MHz, 430-450MHz (European Models – Amateur Bands only) |
| Frequency Stability | ±0.5ppm (after 1 minute @ -10ºC to +50ºC) |
| Operating Temperature Range | -10ºC to +50ºC |
| Emission Modes | A1A (CW), A3E (AM), J3E (LSB,USB), F3E (FM), F1B (RTTY), F7W (C4FM) F1D (Packet) , F2D (Packet) |
| Frequency Steps | 5/10Hz (SSB, CW, AM), 100Hz (FM, C4FM) |
| Antenna Impedance | Keep this for the ATU matching figures to be inserted |
| Power Consumption (Approx figures) |
Rx (no signal) 1.8 A RX (signal Present) 2.2A TX (100W) 23.0A HF/50MHz TX (50W) 15.0A VHF/UHF |
| Supply Voltage | DC 13.8 V ±10% (Negative Ground) |
| Dimensions (W x H x D, mm) | 229 x 80 x 253 mm ( 9″ x 3.2″ x 10”) |
| Weight (kg) | 4.3Kg |
| TRANSMITTER | |
| Power Output | HF/50MHz 5 – 100 Watts (2 – 25 Watts AM carrier) 144/430MHz 5 – 50 Watts ( 2 – 12.5W AM Carrier) |
| Modulation Types | J3E (SSB): Balanced A3E (AM) Low-level (Early Stage ) F3E (FM) Variable Reactance F7W (C4FM) 4-level FSK |
| Maximum FM Deviation | ±5.0kHz/±2.5kHz |
| Harmonic Radiation | Better than -63dB (1.8 – 30 MHz,50,144,430MHz Amateur bands European Version only) |
| SSB Carrier Suppression | At least 50dB below peak output |
| Undesired Sideband Suppr. | At least 50dB below peak output |
| Bandwidth | 3kHz (LSB/USB), 500Hz (CW), 6kHz (AM), 16kHz (FM/C4FM) |
| Audio Response (SSB) | Not more than -6dB from 300 to 2700 Hz |
| Microphone Impedance | 600Ω (200 to 10kΩ) |
| RECEIVER | |
| Circuit Type | SSB/CW/AM Triple Conversion Superhetrodyne FM/C4FM Double Conversion Superhetrodyne |
| dd | dd |
| Intermediate Frequencies | SSB/CW/AM 69.450MHz/ 9.000 MHz / 24KHz FM/C4FM 69.450MHz / 450KHz |
| Sensitivity | SSB (BW: 2.4 kHz, 10dB S+N/N) 0.158µV (1.8 – 30MHz, RF AMP2 ON) 0.12µV (50 – 54 MHz RF AMP2 ON) 0.11µV (144 – 148, 430 – 450 MHz, RF AMP2 ON) |
| AM (BW: 6 kHz, 10dB S+N/N, 30% modulation @ 400 Hz) | |
| 5µV (0.5 0 1.8 MHz, AMP2 \”ON\”) | |
| 1.6µV (1.8 – 30 MHz, AMP2\”ON\”) | |
| 1.25µV 50 – 54 MHz, AMP2\”ON\”) | |
| FM (BW: 15 kHz, 12 dB SINAD) | |
| 0.35 µV (28 – 30 MHz,50 -54 MHz, AMP2\”ON\”) | |
| 0.18 µV (144 – 148, 430 -450MHz, AMP2\”ON\”) | |
| * There are no specifications in frequency ranges not listed * | |
| Selectivity (WIDTH: Centre) | Mode -6db -60dB |
| CW/RTTY/PKT 0.5kHz or better 750Hz or less | |
| SSB 2.4kHz or better 3.6kHz or less | |
| AM 6kHz or better 15kHz or less | |
| FM 15kHz or better 25kHz or less | |
| Image Rejection | 70dB or better (160 -6M Amateur bands) |
| 60dB or better (2m /70cms Amateur band) | |
| Maximum Audio Output | 2.5W into 4Ω with 10% THD |
| Audio Output Impedance | 4 to 8Ω (4Ω: Nominal) |
| Conducted Radiation | Less than 4 nW |
| Specifications are subject to change, in the interest of technical improvement, without notice or obligation, and are guaranteed only within the Amateur Bands. |
‘, ‘
The FT-991A is a NEW generaton all-band transceiver offering fully-fledged support for all modes including HF/6M/144/430 MHz in a single compact package with support for System Fusion C4FM Digital communications. The FT-991 builds on the FT-991 by adding additional hardware and software to provide a real time band scope with full screen display.
